+ LOC: 41.8781° N, 87.6298° W // GRID: CAD-ENGINEERING-MODE
TOLERANCE: ±0.015" // SPEC: SAE-J1455
ENGINEERING SCHEMATIC SPECIFICATIONREV 4.2.0-STABLE
FINITE ELEMENT
FRONT-END SHIELD
Engineered exclusively for heavy Class 8 commercial vehicles. Every bend, truss, and radar cutout is CNC-modeled to withstand 18,000+ Joules of kinetic impact without radiator intrusion or sensor occlusion.
Kinetic Absorption
18.5 kJ
@ 70 MPH Animal Impact
Radar Pass-Through
99.8%
77-81 GHz CAS Compliant
Install Duration
22 Min
Direct Factory Tow Sockets
EXPLODED ASSEMBLY INSPECTORMODEL: SG-VOLVO-VNL-X
SELECTED COMPONENT // DWG-TUBE-VNL-REV4
3.5" OD High-Tensile Structural Tubing
Material: ASTM A500 Grade C Carbon Steel with 50,000 PSI minimum yield strength
Performance: Yield Threshold: 18,200 Joules without structural deflection into cooling stack
PRODUCT REPOSITORY
VERIFIED RIG COMPATIBILITY MATRIX
VOLVO
TRUCK: VolvoTier 2

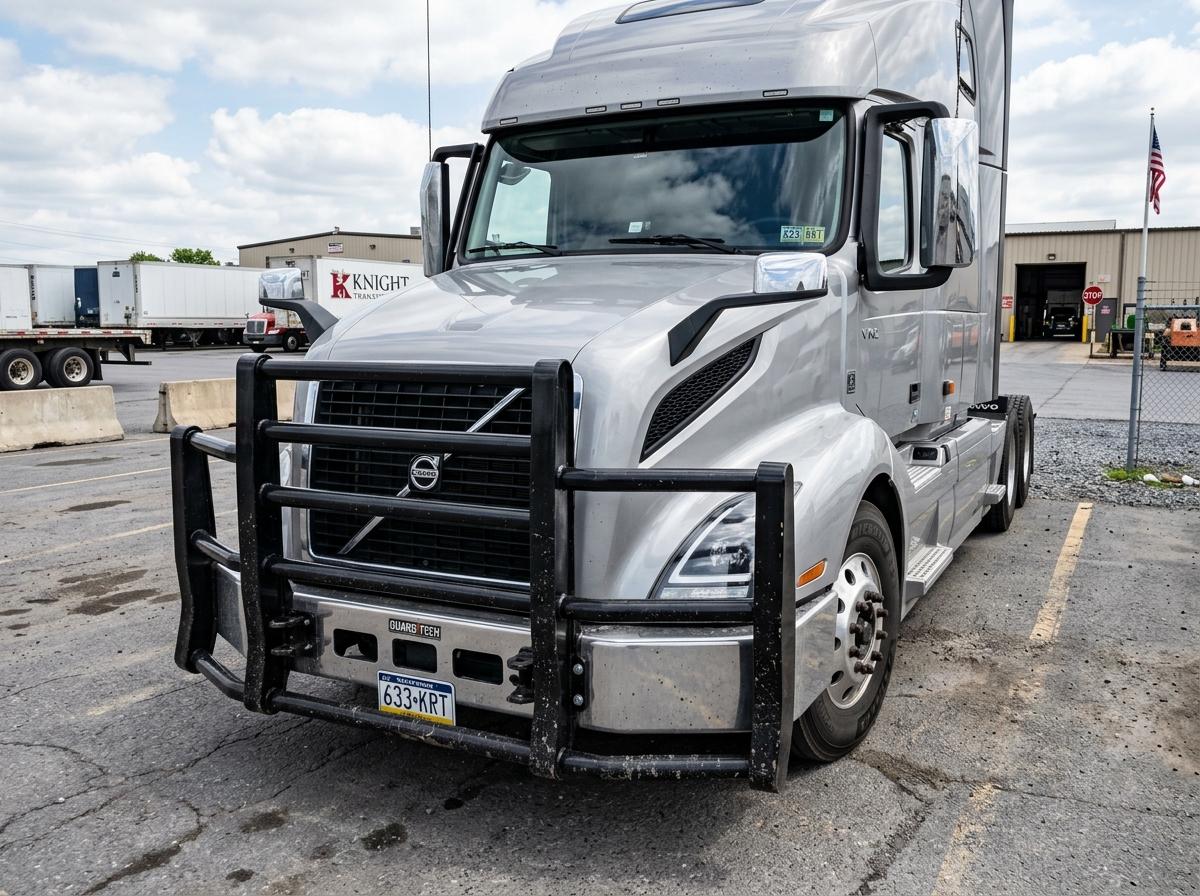

AeroShield Heavy Duty Guard — Volvo VNL
Model: VNL 760 / 860
Gauge: 1/4" High-Tensile Steel
Rating: 18,500 Joules (70 MPH Whitetail)
$2,199
FREIGHTLINER
TRUCK: FreightlinerTier 2

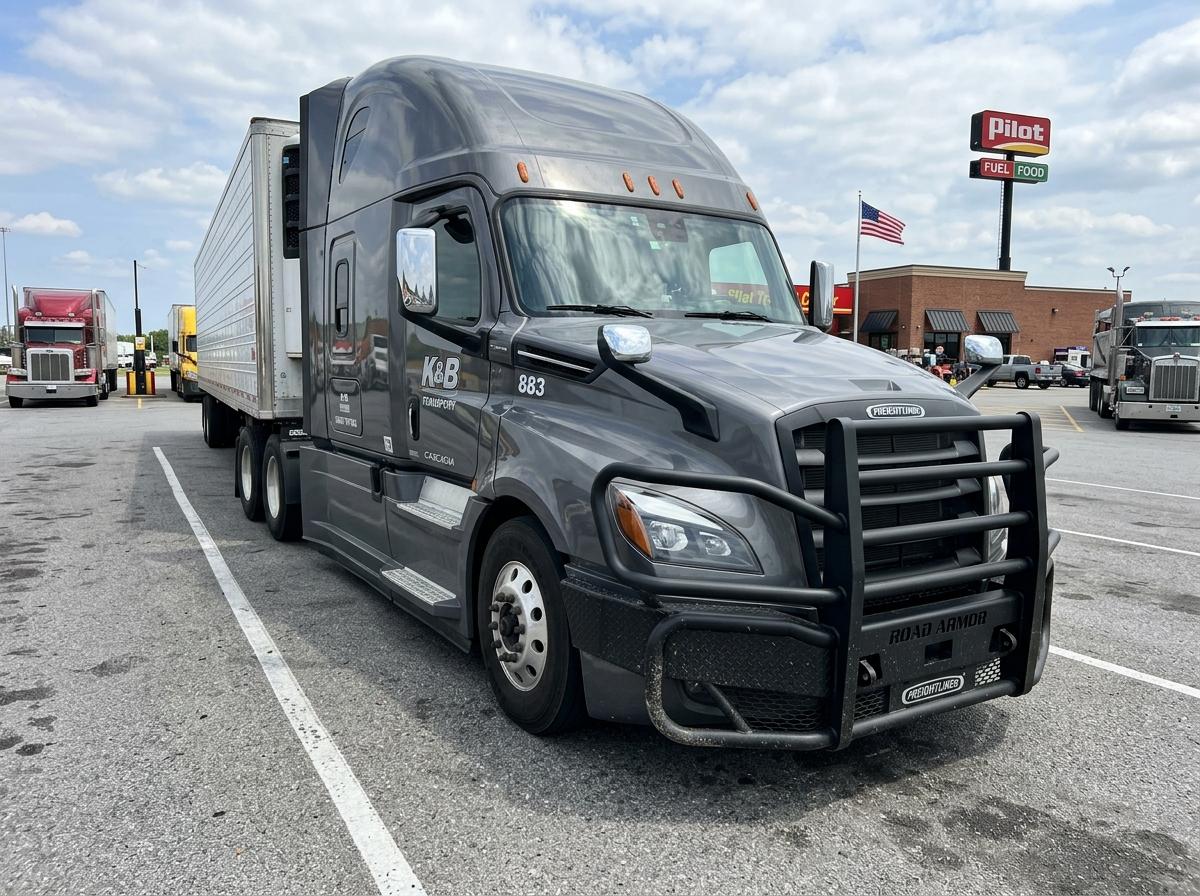

Titan Pro Sentinel Guard — Cascadia
Model: Cascadia (All Trims)
Gauge: 3/8" Cold-Rolled Carbon Steel
Rating: 19,200 Joules (75 MPH Mule Deer)
$2,349
KENWORTH
TRUCK: KenworthTier 1

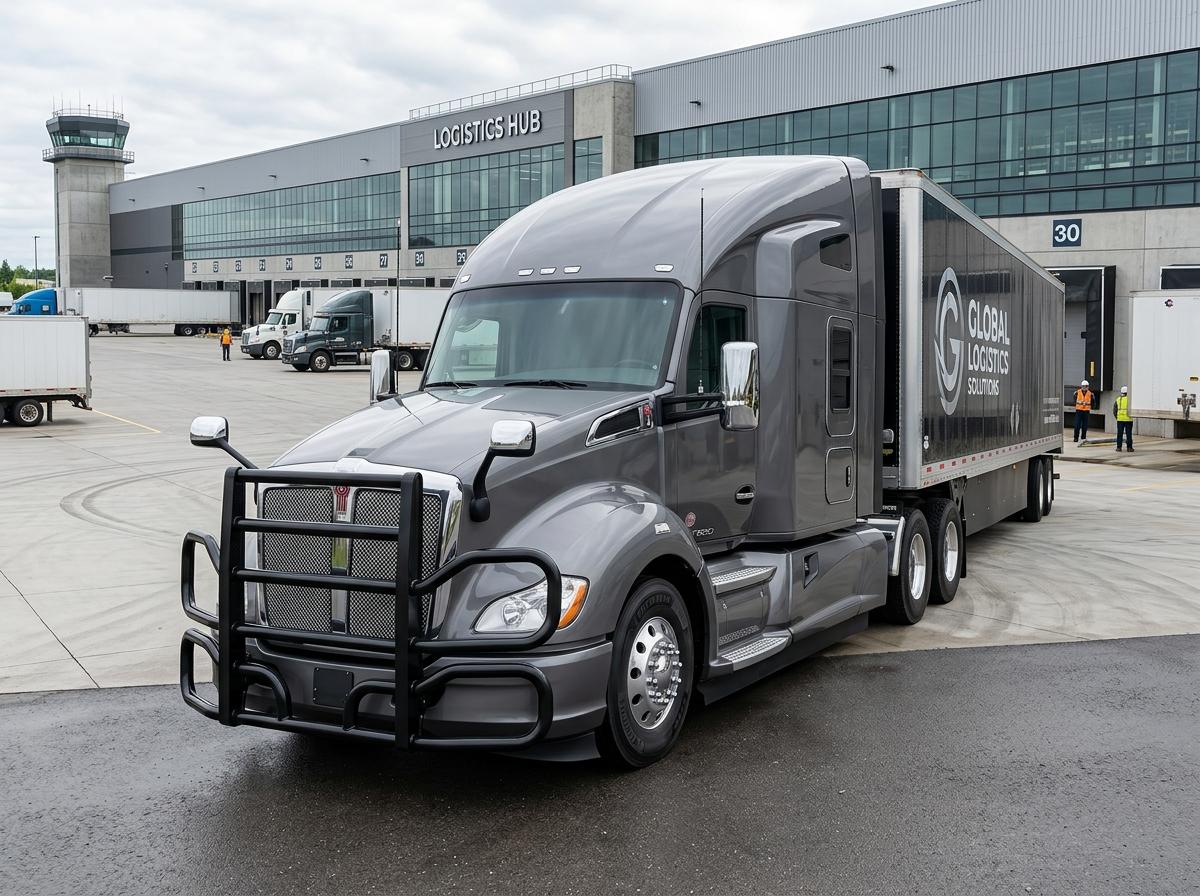

AeroFlow CAS Radar Guard — Kenworth T680
Model: T680 Next Gen / Classic
Gauge: 3.5" OD High-Yield Tubing
Rating: 14,800 Joules (65 MPH Deer)
$1,899
